Aluminum Spacer Bar Bending Machine

—— Product Description ——

This machine is a fully automatic aluminum bar bending machine, used for forming and bending aluminum spacer frames.

Model: LWJ01

Production :30-40 days

—— Selection Parameters ——

    Main performance characteristics

    It adopts Omron PLC control, the man-machine interface adopts Winview touch screen, the operation is simple and fast.

    Adopt Taiwan Airtac pneumatic components, accurate and reliable action.

    The servo motor is used for feeding and bending, the bending speed is fast and the error is small. Aluminum frame size error ±2mm/m, angle error after bending ±0.3.

    The four storage tanks can store 4 kinds of aluminum strips with different width.

    Automatically avoid the joints and arcs of aluminum bars during bending and cutting, and automatically cut after bending.

    It can be operated manually, which is convenient for equipment debugging and maintenance

    It can bend 32 shapes including triangles, rectangles, regular pentagons, regular hexagons, circular arcs and other shapes that combine arcs and straight sides.


    The main technical parameters

    Aluminum bar width: 5.5mm---24mm

    Aluminum frame size: Min—250*250mm

    Feeding speed up to 120m/min

    Air pressure: 0.6Mpa

    Power supply: 3P 380V/1P+N 200V 50Hz 4KW

    Equipment size: 10480mm(length)*2200mm(width)*2600mm(height)


    Main components:

    Number

    Product name

    Brand name

    Brand location

    1

    PLC

    Omron

    Japan

    2

    Color touch screen

    Winview

    Taiwan

    3

    Photoelectric switch

    Autonics

    Korea

    4

    servo motor

    Omron

    Japan

    5

    The electromagnetic valve

    AirTAC

    Taiwan

    6

    Low-voltage electrical appliances

    Schneider

    France

    7

    cylinder

    AirTAC

    Taiwan

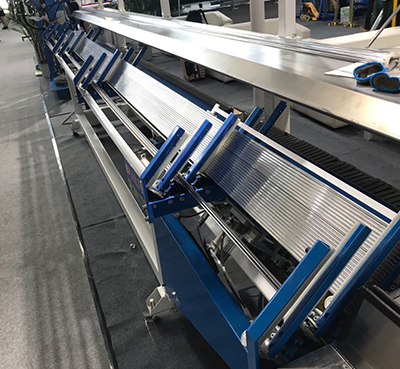

—— Detail Image ——
—— Flow Chart ——
